GS316PP-100EUS - Switches by Netgear

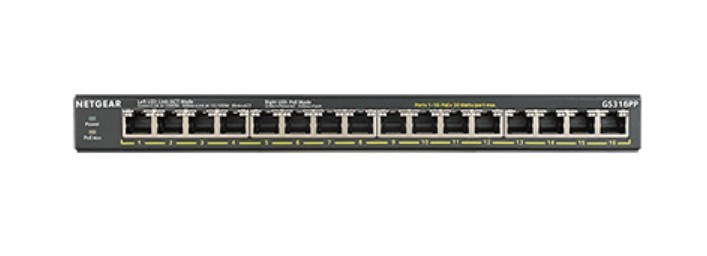

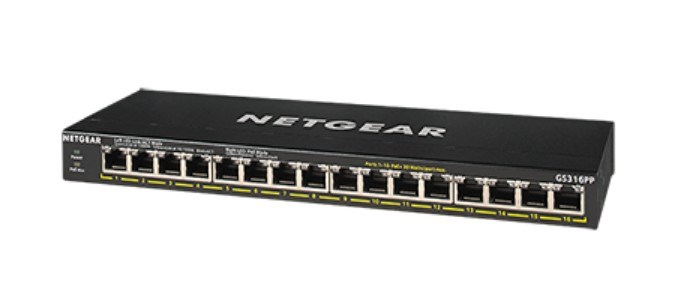

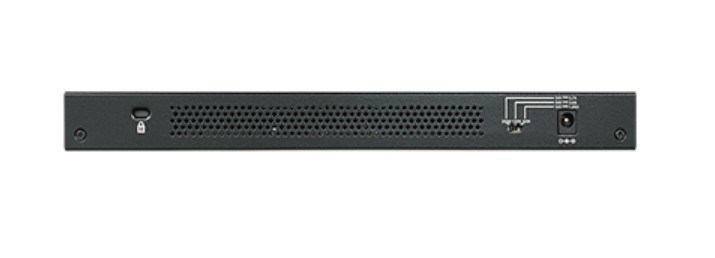

Name: NETGEAR GS316PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Brand: Netgear
SKU: GS316PP-100EUS
Price: 243.75 EUR
Availability: InStock

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches with PoE provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The unmanaged switches provides power and data from a single Ethernet (CAT-5e) cable to devices such as IP cameras, VoIP/ Internet-based phones, wireless access points, etc. The majority of these models also support PoE power auto-balance and allocation feature. NETGEAR’s unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. These switches deliver the power the device needs, at the most granular level.

12 IN STOCK

RRP Price €243.75

Specifications

Management features

Switch type

Unmanaged

Quality of Service (QoS) support

Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power connector

DC-in jack

Network

Networking standards

IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

10G support

Full duplex

Yes

Flow control support

Yes

Auto MDI/MDI-X

Yes

Auto-sensing

Yes

Auto-negotiation

Yes

Data transmission

Switching capacity

32 Gbit/s

MAC address table

4000 entries

Latency (1 Gbps)

3.7 µs

Jumbo frames support

Yes

Jumbo frames

9216

Packet forwarding rate (1 Gbps)

1448000 pps

Packet buffer memory

1 MB

Security

Queue scheduling algorithms

Weighted Round Robin (WRR)

Design

Rack mounting

Product colour

Black

Housing material

Metal

LED indicators

Activity, Link, PoE, Power, Speed

Wall mountable

Yes

Performance

Mean time between failures (MTBF)

2362192 h

Power

DC input voltage

54 V

Input current

3.7 A

Power consumption (max)

195.9 W

Power over Ethernet (PoE)

Yes

Power over Ethernet plus (PoE+) ports quantity

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

183 W

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

0 - 90%

Operating altitude

0 - 3000 m

Heat dissipation

669.9 BTU/h

Weight & dimensions

Width

286 mm

Depth

102 mm

Height

27 mm

Weight

880 g

Certificates

Certification

CE, FCC Part A, IC A, RCM, VCCI, BSMI, KC, CB, CE LVD

Logistics data

Harmonized System (HS) code

85176990

Description

Manufacturer

Netgear

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.88 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
