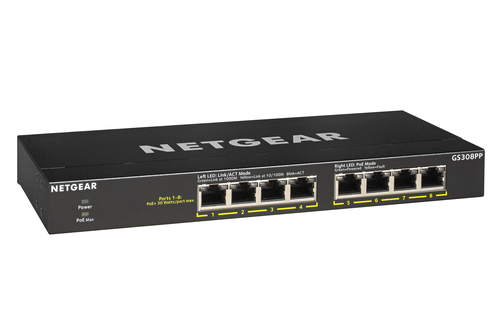

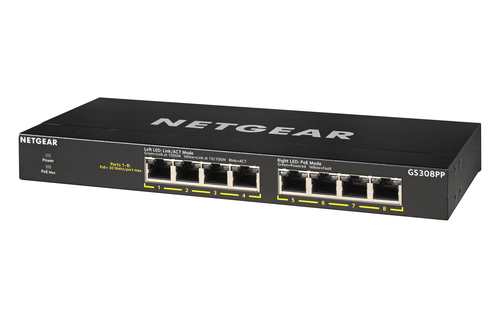

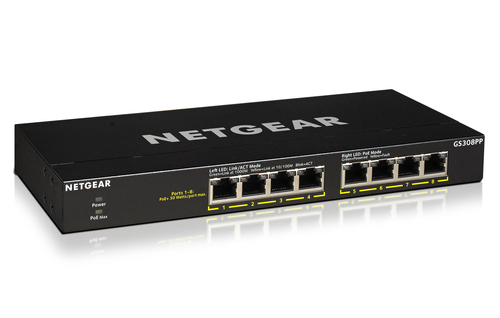

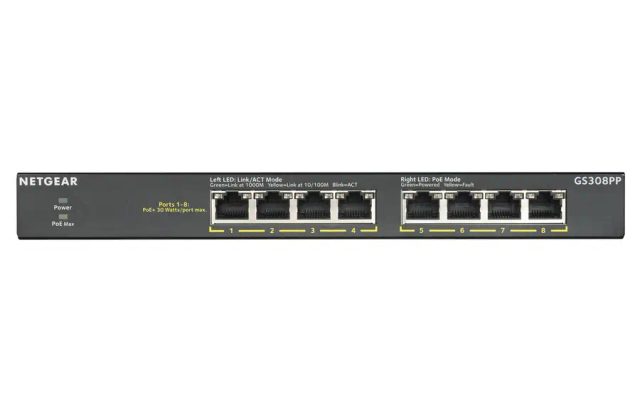

GS308PP-100EUS - Switches by Netgear

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches with PoE provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The unmanaged switches provides power and data from a single Ethernet (CAT-5e) cable to devices such as IP cameras, VoIP/ Internet-based phones, wireless access points, etc. The majority of these models also support PoE power auto-balance and allocation feature. NETGEAR’s unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. These switches deliver the power the device needs, at the most granular level

50 IN STOCK

RRP Price €138.62

Specifications

Management features

Switch type
Unmanaged
Quality of Service (QoS) support
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)

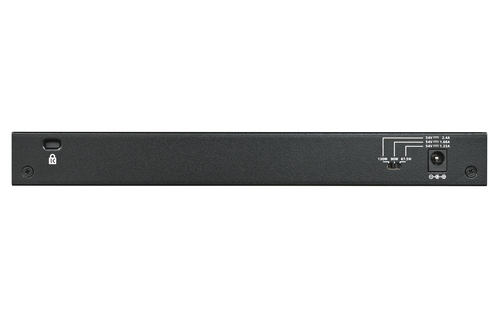

Power connector
DC-in jack

Network

Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support
No
Full duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
Auto-sensing
Yes
Auto-negotiation
Yes

Data transmission

Switching capacity
16 Gbit/s
MAC address table
4000 entries
Latency (1 Gbps)
3 µs
Jumbo frames support
Yes
Jumbo frames
9216
Packet forwarding rate (1 Gbps)
1448000 pps
Packet buffer memory
0.192 MB

Design

Rack mounting
Yes
Product colour
Black
Housing material
Metal
LED indicators
Activity, Link, PoE, Power, Speed
Wall mountable
Yes

Performance

Mean time between failures (MTBF)
2752476 h

Power

DC input voltage
54 V
Input current
1.66 A
Power consumption (max)
87.9 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) type supported
PoE+
Power over Ethernet plus (PoE+) ports quantity
8
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
130 W

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Operating altitude
0 - 3000 m
Heat dissipation
300.6 BTU/h

Weight & dimensions

Width
236 mm
Depth
102 mm
Height
27 mm
Weight
600 g

Certificates

Certification
CE Mark, FCC Part 15 Class A, IC Class A, RCM, VCCI, BSMI, KC

Logistics data

Harmonized System (HS) code
85176990

Accessories

License
